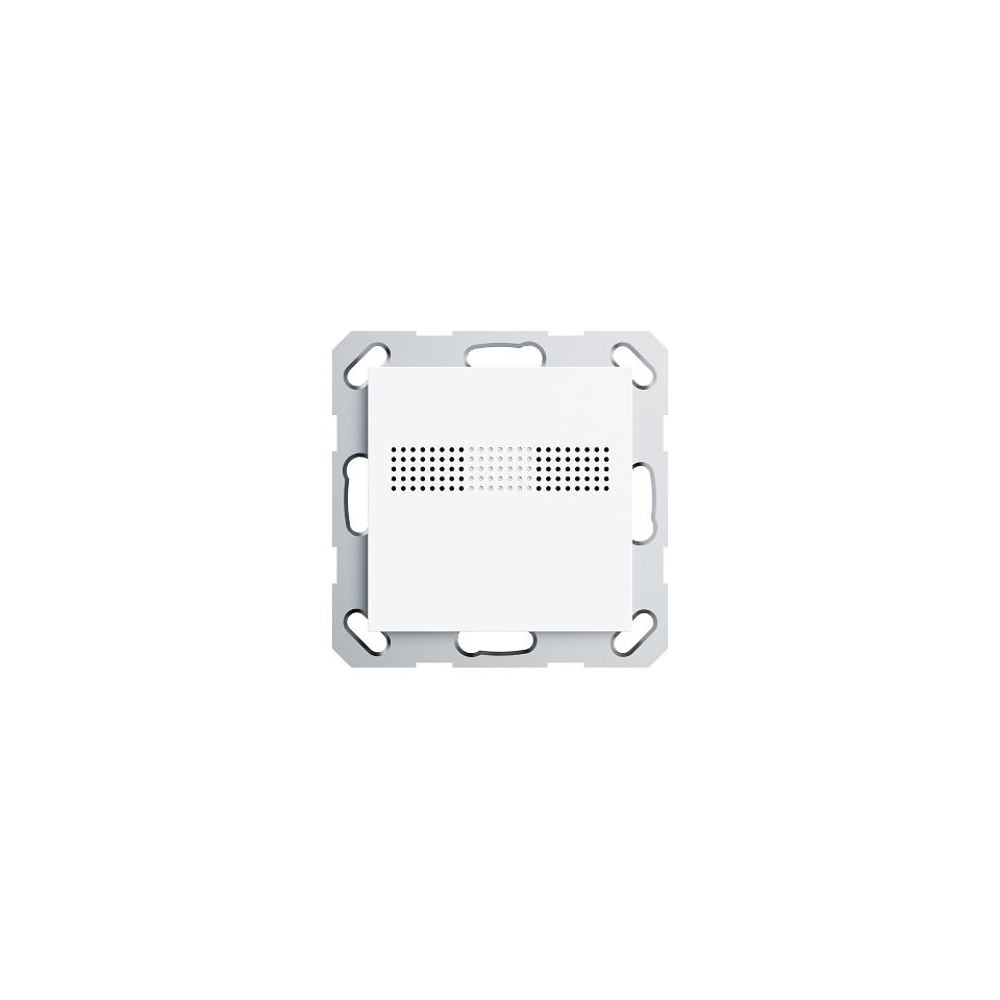

GVS Sensor KNX de CO₂, temperatura y humedad, 55 mm

GVS KNX CO2/Temp/Humidity Sensor with Secure, 55mm

Built-in CO2 & temperature & humidity sensor, Out-of-wall thickness:11.3mm, 2-fold input(Binary or NTC 10K Temp. sensor). Room temperature control (RTC-3 folds) :support control modes: heating/colling, with 2/4-pipe system; HVAC operation modes: comfort,standby,economy,protection. Temperature logic algorithm supports 2-point and PI control Air quality level function: humidity control( 4 levels), CO2 level output(4 levels) Air quality controller: humidity control(step), CO2 level output(step & PI ). support alarm function Power: KNX Bus only; Consumption: bus 17mA Installation: Wall mounted. Fits in Chinese 86*86mm, British 70*70mm, German Round (Ø 68mm), Swiss wall boxes. Color option: White, Matt finish

Product information

• Protocol: KNX
• Model: CHAQ-03/55.2.00
• GVS ART N.O.: 101140073
• Security: KNX Secure
